PEC Monte Carlo simulation

Start by importing MagmaPEC and MagmaPandas and any other packages you want to use. Here we also import Pandas for importing pressure data. For details on the use of MagmaPandas, please see it’s documentation.

import MagmaPEC as mpc
import MagmaPandas as mp

import pandas as pd

Confirm the model and PEC configurations. If you want to change models or PEC settings, follow the configuration example.

print(mpc.model_configuration)
print(mpc.PEC_configuration)

################## MagmaPandas ###################
##################################################
General settings__________________________________
fO2 buffer.....................................QFM
ΔfO2.............................................1
Melt Fe3+/Fe2+.............................sun2024
Kd Fe-Mg ol-melt........................toplis2005
Melt thermometer....................putirka2008_15
Volatile solubility model.......iaconomarziano2012
Volatile species.............................mixed
##################################################


############ Post-entrapment crystallisation ############
################### correction model ####################
Settings_________________________________________________
Fe2+ behaviour...................................buffered
Stepsize equilibration (moles)...................0.002
Stepsize crystallisation (moles).................0.05
Decrease factor..................................5
FeO convergence (wt. %)..........................0.05
Kd convergence...................................0.005
#########################################################

In the next few steps we import all relevant data and set up the melt initial FeO prediction model. These steps are identical to the FeOi and PEC correction examples

Import melt inclusion and olivine data:

melt_file = "./data/melt.csv"
olivine_file = "./data/olivine.csv"

melt = mp.read_melt(melt_file, index_col=["name"])
olivine = mp.read_olivine(olivine_file, index_col=["name"])

Import inclusion internal pressures or calculate them if you have measured melt CO2 (and H2O). See the PEC model example for details on how to do the calculation. Here we import them from a file.

pressure_file ="./data/pressure.csv"
pressure = pd.read_csv(pressure_file, index_col = ["name"]).squeeze()

Set up the melt initial FeO prediction model:

wholerock_file = "./data/wholerock.csv"
wholerock = mp.read_melt(wholerock_file, index_col=["name"])

x = wholerock.drop(columns=["FeO"])
FeOi_predict = mpc.FeOi_prediction(x=x, FeO=wholerock["FeO"])

do_not_use = ["MnO", "P2O5", "Cr2O3", "total"]

model_fits = FeOi_predict.calculate_model_fits(exclude=do_not_use)

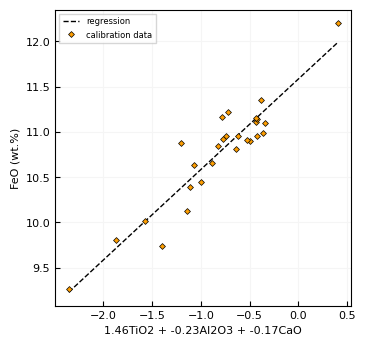

FeOi_predict.select_predictors(idx=3)

Next, we need to set up the object that handles the random sampling of errors in the Monte Carlo simulation. This is done with the PEC_MC_parameters class and it includes the following parameters for error propagation:

• melt_errors

  propagate errors on melt composition by providing one standard deviation errors per element as a pandas Series (fixed errors for all inclusions) or DataFrame (errors per inclusion).

• olivine_errors

  propagate errors on olivine composition by providing one standard deviation errors per element as a pandas Series (fixed errors for all inclusions) or DataFrame (errors per inclusion).

• pressure_errors

  propagate errors on inclusion internal pressures by providing one standard deviations arrors as float or ints (fixed errors for all inclusions), or pandas series or numpy arrays (errors per inclusion).

• FeOi_errors

  propagate errors on estimate melt initial FeO contents. Fixed errors can be provided either for the whole dataset, or per inclusion. Alternatively, an FeOi_prediction object can be provided to propagate errors on predictions models.

• Fe3Fe2

  Propagate errors on modelled melt Fe2+/Fe3+ ratios. Pass True to this parameter to activate it. Errors are automatically calculated by MagmaPandas based on the the procedure outlined here

• Kd

  Propagate errors on modelled olivine-melt Fe-Mg partition coefficients. Pass True to this parameter to activate it. Errors are calibration errors stated in the original publications - see here for their values

• temperature

  Propagate errors on modelled olivine liquidus temperatures. Pass True to this parameter to activate it. Errors are calibration errors stated in the original publications - see here for their values

By default errors are not propagated - you explicitely need to tell MagmaPEC to do so when initialising the PEC_MC_parameters object

In this example we will use all error propagation options, which means we need to provide analytical errors for all elements measured in melt and olivine. We import these from .csv files containing error data for individual inclusions and olivines. This is just an example with randomly generated errors, normally you should use analytical errors.

melt_errors_file = "./data/melt_errors.csv"
olivine_errors_file = "./data/olivine_errors.csv"

melt_errors = pd.read_csv(melt_errors_file, index_col=[0])
olivine_errors = pd.read_csv(olivine_errors_file, index_col=[0])

Make very sure that the elements in the error data have identical sorting to the melt and olivine dataframes, otherwise errors will be applied to the wrong elements. We can force this by sorting the columns of the error dataframes (or series) with the elements attributes of the melt and olivine MagmaFrames:

melt_errors = melt_errors[melt.elements]
olivine_errors = olivine_errors[olivine.elements]

Here’s what they look like:

melt_errors.head()

	SiO2	Al2O3	MgO	CaO	FeO	Na2O	K2O	MnO	TiO2	P2O5	Cr2O3	CO2	H2O	F	S	Cl
PI032-04-01	1.02	0.64	0.14	0.47	0.69	0.10	0.08	0.05	0.18	0.05	0.05	0.17	0.21	0.22	0.10	0.12
PI032-04-02	1.06	0.84	0.29	0.46	0.54	0.05	0.03	0.01	0.06	0.18	0.04	0.24	0.12	0.13	0.12	0.04
PI041-02-02	1.04	0.90	0.09	0.55	0.49	0.22	0.21	0.01	0.16	0.04	0.00	0.15	0.23	0.04	0.17	0.06
PI041-03-01	0.98	0.64	0.10	0.40	0.53	0.12	0.12	0.08	0.01	0.03	0.00	0.05	0.36	0.06	0.14	0.04
PI041-03-03	1.02	0.54	0.31	0.42	0.68	0.18	0.03	0.02	0.11	0.06	0.10	0.18	0.08	0.13	0.06	0.15

olivine_errors.head()

	SiO2	FeO	MgO	NiO	MnO	Al2O3	CaO
PI032-04-01	1.06	0.60	1.22	0.01	0.09	0.08	0.02
PI032-04-02	0.85	0.57	1.28	0.14	0.07	0.24	0.06
PI041-02-02	1.11	0.44	1.30	0.08	0.10	0.01	0.19
PI041-03-01	0.99	0.50	1.31	0.14	0.16	0.15	0.01
PI041-03-03	0.95	0.64	1.21	0.13	0.11	0.10	0.15

Together with the FeOi_prediction object, we pass these as arguments to the PEC_MC_parameters object. Errors on pressure are fixed at 2 kbar for al inclusions via the pressure_errors argument. We also set Fe3Fe2 and Kd to True in order to propagate their model errors.

mc_parameters = mpc.PEC_MC_parameters(melt_errors=melt_errors, olivine_errors=olivine_errors, pressure_errors=2e3, FeOi_errors=FeOi_predict, Fe3Fe2=True, Kd=True, temperature=True)

Now we can create the Monte Carlo model with the PEC_MC object

pec_mc_model = mpc.PEC_MC(inclusions=melt, olivines=olivine, P_bar=pressure, FeO_target=FeOi_predict, MC_parameters=mc_parameters)

and run it with 20 iterations:

pec_mc_model.run(n=20)

Monte Carlo iterations... |█████████████████████████| 100% [20/20] in 1:11.8

Results are stored internally in the following attributes:

• pec: pandas DataFrame

  Average PEC extents (%) of the MC model and their one standard deviation errors. Positive values indicate post-entrapment crystallisation and negative melting.

• inclusions_corr: MagmaPandas Melt frame

  Averages of corrected melt inclusion compositions (wt. %)

• inclusions_stddev: pandas DataFrame

  One standard deviation errors on inclusions_corr (wt. %)

• pec_MC: pandas DataFrame

  PEC extents for individual iterations. Positive values indicate post-entrapment crystallisation and negative melting.

• inclusions_MC: dictionary of MagmaPandas Melt frames

  corrected melt inclusion compositions for individual iterations.

• MC_inputs: numpy array of dictionaries

  input parameters for each MC iteration. Each dictionary contains

  • ‘inclusions’

  • ‘olivines’

  • ‘P_bar’

  • ‘FeO_target’

  • ‘Fe3Fe2_offset_parameters’

  • ‘Kd_offset_parameters’

  • ‘temperature_offset_parameters’

  if you want to view the parameters used for iteration n, use pec_mc_model.MC_inputs[n], and if you want to run this iteration individually use mpc.PEC(**pec_mc_model.MC_inputs[n])

pec = pec_mc_model.pec
inclusions_corrected = pec_mc_model.inclusions_corr
inclusions_errors = pec_mc_model.inclusions_stddev

pec_mc = pec_mc_model.pec_MC
inclusions_MC = pec_mc_model.inclusions_MC

pec

	pec	stddev
name
PI032-04-01	9.685277	5.443236
PI032-04-02	10.868720	4.281761
PI041-02-02	0.368495	2.965795
PI041-03-01	13.524623	5.176464
PI041-03-03	13.087550	5.469071
PI041-05-04	-3.841895	2.874289
PI041-05-06	2.573486	3.331781
PI041-07-01	12.885425	4.738129
PI041-07-02	11.996061	4.764667
PI052-01-02	-7.549742	3.441786

inclusions_corrected

	SiO2	Al2O3	MgO	CaO	FeO	Na2O	K2O	MnO	TiO2	P2O5	Cr2O3	CO2	H2O	F	S	Cl
name
PI032-04-01	48.854736	13.989939	7.733251	9.756356	10.272426	3.552850	0.664288	0.140531	2.384549	0.270005	0.000000	0.620748	1.373265	0.137289	0.165366	0.084401
PI032-04-02	47.938471	14.985039	7.510094	9.545912	10.322534	3.452154	0.914013	0.139713	2.567965	0.352508	0.000000	0.677713	1.309715	0.081084	0.154427	0.048657
PI041-02-02	49.102677	16.951397	4.883078	9.425064	10.127767	3.736871	1.023089	0.155205	2.779284	0.552344	0.000000	0.441630	0.614232	0.053783	0.099636	0.053943
PI041-03-01	45.917138	15.675827	7.424108	10.806755	10.672145	3.245829	1.120739	0.118133	3.104618	0.539431	0.000000	0.799663	0.366641	0.094553	0.056260	0.058159
PI041-03-03	45.444744	15.606286	7.196503	11.095448	10.862131	3.357512	1.163975	0.086978	3.245260	0.512273	0.000000	0.822170	0.301381	0.127218	0.067515	0.110604
PI041-05-04	47.877579	18.671661	3.779860	9.457522	9.299051	4.630310	1.636540	0.162759	2.499504	0.824601	0.000000	0.403848	0.484387	0.093956	0.123563	0.054859
PI041-05-06	46.385388	16.810662	4.821381	8.860490	11.524027	4.197472	1.368307	0.128971	3.658201	0.629224	0.000000	0.616049	0.674135	0.128050	0.124094	0.073549
PI041-07-01	45.961815	14.860880	7.425545	9.578621	11.691891	3.113103	1.265879	0.167545	3.521256	0.547985	0.000000	0.467122	1.005410	0.122266	0.175441	0.095240
PI041-07-02	45.941338	15.589071	7.036013	9.952622	11.427614	3.166068	1.355262	0.139580	3.501012	0.611335	0.000000	0.360888	0.657041	0.072969	0.126636	0.062551
PI052-01-02	49.207348	17.056520	4.118087	10.276098	8.493912	4.907111	1.541290	0.241360	1.746724	0.598496	0.118532	0.286958	1.124604	0.110795	0.108728	0.063437

inclusions_errors

	SiO2_stddev	Al2O3_stddev	MgO_stddev	CaO_stddev	FeO_stddev	Na2O_stddev	K2O_stddev	MnO_stddev	TiO2_stddev	P2O5_stddev	Cr2O3_stddev	CO2_stddev	H2O_stddev	F_stddev	S_stddev	Cl_stddev
name
PI032-04-01	0.686030	0.922066	1.492955	0.573610	0.331683	0.188475	0.083719	0.053939	0.140933	0.038465	0.000000	0.161533	0.249122	0.140233	0.101547	0.069214
PI032-04-02	0.556864	0.721940	1.273484	0.422099	0.261176	0.150692	0.050106	0.013296	0.135044	0.144859	0.000000	0.198639	0.095009	0.076590	0.114092	0.036706
PI041-02-02	0.657886	0.904655	0.926579	0.589270	0.348315	0.206251	0.240745	0.012601	0.176104	0.035135	0.000000	0.175957	0.184304	0.037234	0.120262	0.059369
PI041-03-01	0.607437	0.767089	1.550640	0.491581	0.216898	0.139260	0.111988	0.062756	0.117192	0.032272	0.000000	0.059690	0.256321	0.055374	0.062444	0.030225
PI041-03-03	0.702875	0.763589	1.625072	0.640912	0.260789	0.193349	0.043944	0.021875	0.157445	0.072849	0.000000	0.185321	0.056151	0.123519	0.043792	0.114647
PI041-05-04	0.672830	1.168031	0.848682	0.439815	0.400744	0.242245	0.091677	0.109928	0.077135	0.025504	0.000000	0.206050	0.107820	0.100505	0.008768	0.008581
PI041-05-06	0.732337	1.212365	0.993845	0.418659	0.414983	0.338946	0.253796	0.150857	0.183679	0.049370	0.000000	0.263663	0.288044	0.115429	0.064589	0.026683
PI041-07-01	0.737342	1.272026	1.394157	0.487066	0.269609	0.141461	0.052296	0.061435	0.153585	0.027910	0.000000	0.036235	0.157321	0.091054	0.027396	0.131493
PI041-07-02	0.507348	0.808809	1.353831	0.475640	0.210996	0.149289	0.142977	0.053007	0.138495	0.024398	0.000000	0.208935	0.208426	0.003121	0.036500	0.061395
PI052-01-02	0.678265	0.977873	0.891943	0.614413	0.478923	0.161591	0.077947	0.022607	0.086227	0.162237	0.139249	0.009041	0.155234	0.127927	0.043171	0.020256

pec_mc.head()

name	PI032-04-01	PI032-04-02	PI041-02-02	PI041-03-01	PI041-03-03	PI041-05-04	PI041-05-06	PI041-07-01	PI041-07-02	PI052-01-02
iteration
0	11.463013	10.868896	2.152051	13.980615	9.322839	-3.415686	0.61897	16.520557	10.301697	-6.992139
1	11.035217	13.332764	0.00022	11.846985	15.287744	-4.388879	0.839026	11.163055	11.717395	-7.155634
2	2.819513	4.801294	-3.265625	7.811121	11.339624	-6.0	-1.0	7.610901	11.0	-7.909094
3	17.419189	11.357178	0.6	16.873785	14.450586	-3.647949	1.817664	13.938098	12.245459	-6.078774
4	0.0	5.996069	-4.714355	7.635742	7.634424	-8.244373	-3.002954	5.939392	7.183643	-12.570471

The dataframes in inclusions_MC also have isothermal_equilibration, Kd_equilibration, and FeO_converge columns. These columns show if equilibrations during stage [1] and [2] and FeO convergence in stage [2] were successful. Extreme cases of random error sampling may yield melt-olivine pairs that cannot be equilibrated without requiring crystallising exceeding the mass of the inclusion inclusion or exchange of more Mg or Fe than the inclusion contains. If that is the case, no corrected compositions are calculated and the isothermal- of Kd-equilibration column is set to False.

inclusions_MC["PI032-04-01"].head()

	SiO2	Al2O3	MgO	CaO	FeO	Na2O	K2O	MnO	TiO2	P2O5	Cr2O3	CO2	H2O	F	S	Cl	isothermal_equilibration	Kd_equilibration	FeO_converge
iteration
0	48.320687	13.731066	7.961831	10.608291	10.297861	3.435463	0.56264	0.185908	2.480271	0.274358	0.0	0.551662	1.013808	0.449679	0.126475	0.0	True	True	True
1	48.902367	13.723224	8.375555	9.465865	10.452848	3.661973	0.593371	0.163055	2.437956	0.306267	0.0	0.41602	1.20149	0.0	0.123661	0.176348	True	True	True
2	49.122495	14.468462	5.966062	10.059649	10.030713	3.790503	0.72159	0.188032	2.282057	0.351395	0.0	1.055721	1.5671	0.0	0.373656	0.022564	True	True	True
3	49.086461	12.777884	9.179393	9.033345	10.43309	3.281305	0.654525	0.217169	2.252173	0.252045	0.0	0.794818	1.801323	0.0	0.150781	0.085688	True	True	True
4	49.570999	15.327817	5.503705	9.958353	9.94887	4.041957	0.894194	0.071748	2.374253	0.246788	0.0	0.463712	1.151632	0.125379	0.166631	0.153963	True	<NA>	True

Lets view the pressures used for different iterations:

pec_mc_model.MC_inputs[1]["P_bar"], pec_mc_model.MC_inputs[4]["P_bar"]

(name
 PI032-04-01    2820.134038
 PI032-04-02    2947.689858
 PI041-02-02     671.967541
 PI041-03-01    2264.566801
 PI041-03-03    2216.237876
 PI041-05-04     101.998027
 PI041-05-06    1227.736645
 PI041-07-01    2384.084584
 PI041-07-02    1164.839501
 PI052-01-02     119.941865
 Name: IaconoMarziano, dtype: float64,
 name
 PI032-04-01    4659.725542
 PI032-04-02    4787.281361
 PI041-02-02    2511.559044
 PI041-03-01    4104.158304
 PI041-03-03    4055.829380
 PI041-05-04    1941.589530
 PI041-05-06    3067.328149
 PI041-07-01    4223.676087
 PI041-07-02    3004.431004
 PI052-01-02    1959.533368
 Name: IaconoMarziano, dtype: float64)
